Harden® Two Shaft Shredder TS Series (Single Drive) - Medium Duty

Harden® Two Shaft Shredder TS Series (Single Drive) - Medium Duty

Harden® Two Shaft Shredder TS Series (Single Drive) - Medium Duty
Harden® Two Shaft Shredder TS Series (Single Drive) - Medium DutyHarden® Two Shaft Shredder TS Series (Single Drive) - Medium DutyHarden® Two Shaft Shredder TS Series (Single Drive) - Medium DutyHarden® Two Shaft Shredder TS Series (Single Drive) - Medium Duty
CategoriesTwo Shafts Shredder
BrandHarden
ModelTwo Shaft Shredder TS Series (Single Drive)
FOB portZhongshan, Guangzhou
Terms of PaymentL/C, T/T
Download DOC
Update Time2021-12-09
Detail Information

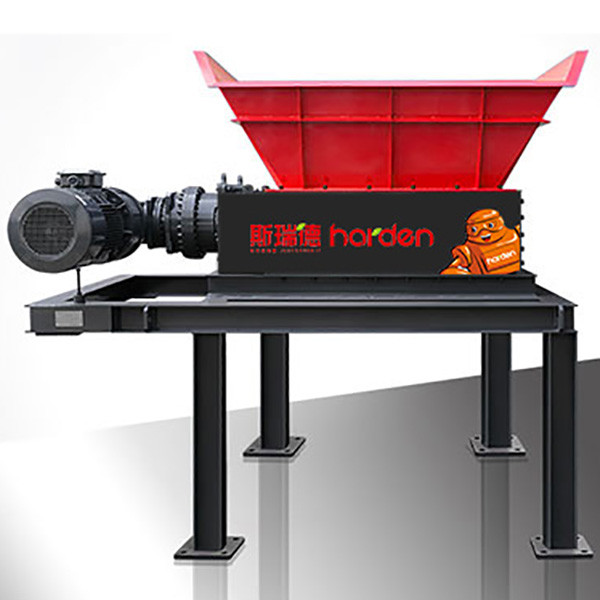

Harden® Two Shaft Shredder TS Series (Single Drive) - Medium Duty
Product catalog download     >>

Harden® TS series are medium-duty Double shaft shredder. TS series equip a single motor and gearbox. A set of transmission gear drives two shafts rotating together, TS series are compact but with a powerful core, strong shaft and blades and various operating protection.


TS series are economical, batch produced with well workmanship. Each process, such as heat treatment, hardness testing, and structural flaw detection, is strict to ensure quality.


Features of Harden® Two Shaft Shredder

Blades Made in High Strength Alloy

Stable Quality | Wear-Resistant | Never Fracture

Professional Design of Cutting Chamber

Stable Operation | Internal Stress Decomposition | Strong Loading Capacity

Patented Spline Shafts and Coupings

Quick Maintenance | High Bearing Capacity

Drawing
Parameter
Model
TS303
TS506
TS508
TS612
Motor Power (KW)
7.5
15
22/30
45

Rotating Speed (RPM)

18
24
14-32
15
Knife Thickness/Mesh Size (mm)
10/33
20/60
28/86
30/60
Size of Cutting Chamber (AxB)(mm)
330*360
500x600
860*500
1200*650
Machine Dimensions (LxWxH)(mm)
1520*730*1350
2550x1300x2600
2550x1390x2900(with feeder)
2650*1300*2630
2650*1900*2900(with feeder)
3100*1900*2600
3200*2900*4000(with feeder)
Capacity (Ton/Hour)
1~2
3-6
6~10
10~15
Application
Kitchen waste
Domestic animals
Construction plate
Jumbo bags
WEEE
Waste cardboard
Garden waste
Confidential destruction
Shredding result

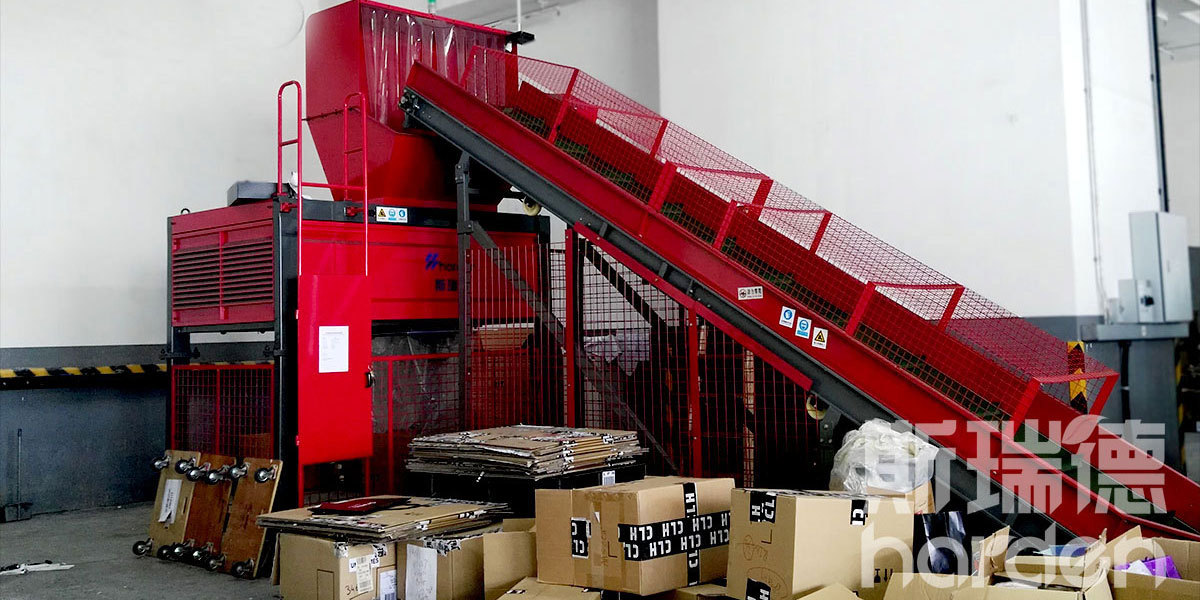

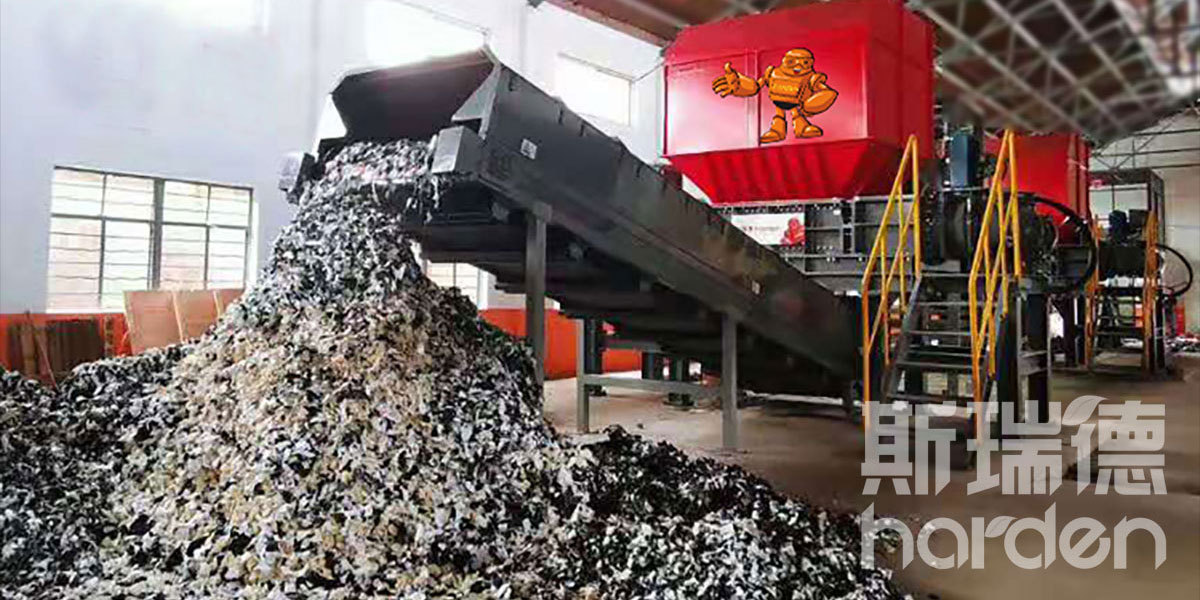

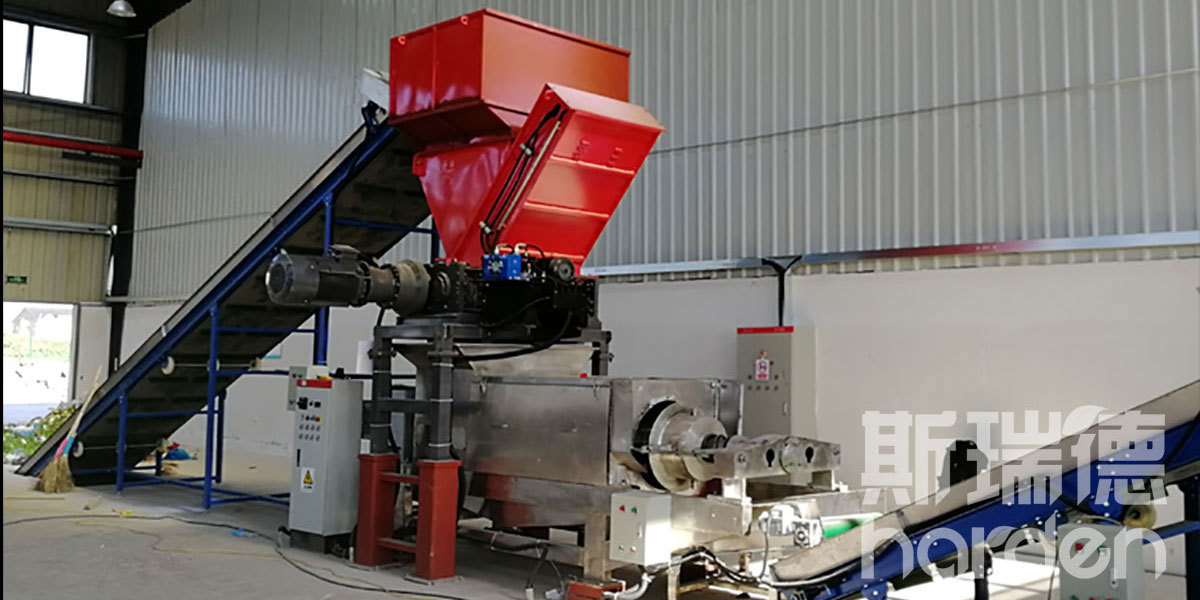

Customer case
Double shaft shredder for leather scraps
Double shaft shredder for fruit and vegetable waste
Doubel shaft shredder for confidential destruction
