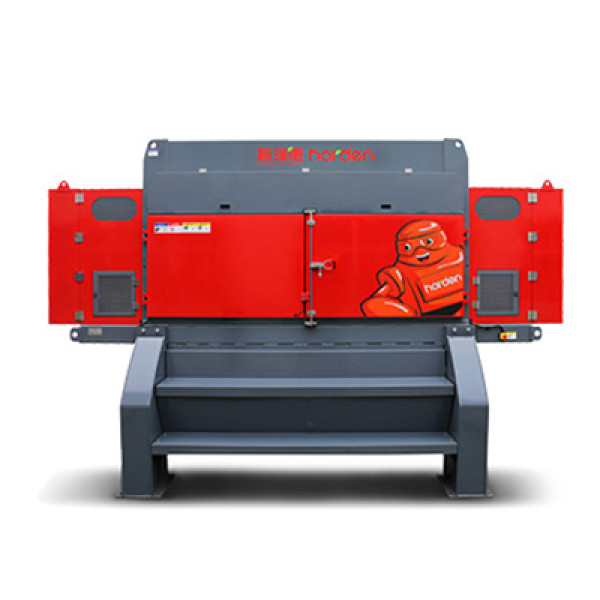

Harden® Single Shaft Shredder SM Series

Harden® Single Shaft Shredder SM Series

Harden® Single Shaft Shredder SM Series
Harden® Single Shaft Shredder SM SeriesHarden® Single Shaft Shredder SM SeriesHarden® Single Shaft Shredder SM SeriesHarden® Single Shaft Shredder SM SeriesHarden® Single Shaft Shredder SM Series
CategoriesSingle Shaft Shredder
AlbumView larger image
BrandHarden
ModelSM3000
FOB portZhongshan, Guangzhou
Terms of PaymentL/C, T/T
Update Time2021-01-16
Detail Information
Harden® Single Shaft Shredder SM Series

Harden® SM Series large-scale single shaft shredder integrates a variety of patented technologies such as intelligent built-in circular arc pressing, gap shearing, patented blade and shaft assembly design, and rapid clearance adjustment. Based on advanced European design and concepts, Harden® has been focusing on providing equipment with large capacity, lower operating costs, less maintenance time, safer and more user-friendly.


Harden® has rich experiences in single-shaft shredder, with specialized parameters (different parameter configuration for torque, speed, action program, and blades) for different shredding materials, processes with excellent shredding performance.


Features of Harden® Single Shaft Shredder

External Hydraulic Maintenance Door

The maintenance door is used for blade replacement, removal of unbreakable objects and knife box cleaning, enjoys advantages as below:

Safety: Hydraulic safety valve + double mechanical safety support.

Easy maintenance: Open operating space + maintenance pedal, easy to access maintenance parts such as blade and shaft assembly.

Time & power saving: hydraulic drive, save time and power.

Patented Structure of Efficient Close-packed Blade and Shaft Assembly

To meet the needs of large-volume production for small materials, Harden® has developed a patented technology of close-packed blade and shaft assembly, which increase the cutting efficiency by 50%.

Efficient and Reliable Power Transmission

Excellent power performance bases on high efficient belt transmission and stable imported planetary reducer, results in:

Combined belt: high transmission power, stable operation

Interchangeability: standardized accessories, high interchangeability, short cycle

Patented Technology of Intelligent Built-in Arc Pressing

Pressing technology is very important for single-shaft shredder. Harden® enjoys advantages as below:

Intelligent adjustment of the pressing speed according to the spindle load

Intelligently pressing operation based on material condition

With a material distribution structure, maximize the utilization of the cutter shaft.

Anti-stuck devices installed at the front and back to avoid Presser getting stuck

Special Hexagonal Screen for Uniform Size of Crushing Particles

The single-shaft crusher is equipped with a screen to control the sizes of flakes, advantages include:

Hydraulic drive, saving time and power

Multi-piece screen structure, easy installation and disassembly

Hexagonal screen mesh maximizes the material passing area.

CE Certificated

Harden® single-shaft Shredder has passed CE safety certification and has a variety of safety functions:

Automatic protection for foreign objects: Self-reset safety clutch cooperates with high-precision sensor, once the unbreakable object occurs, the safety clutch can be automatically disengaged and shut down for protection.

Safety switches: All doors are equipped with safety switches, which are interlocked with the spindle. Once opened, equipment stops operation.

Drawing
SM2200R/SM3000R
SM2200/SM3000

Parameter

Model
SM2200
SM3000
SM3000R
Motor Power (KW)
132*2/160*2
200*2
250*2
Stock Pusher Power (KW)
15
15
15
Size of Cutting Chamber (AxB)(mm)
1700*2200
1700*3000
1700*3000
Machine Dimension (LxWxH)(mm)
4380*3000*2450
5400*3000*2450
6310*2630*3250
4750*2850*3330
6310*2630*3250
4750*2850*3330
Capacity (Ton/Hour)
8~18
15~30
20~35
Application
Clothes, Leather Scrap
Municipal Waste
RDF
Paper Mill Waste
Bulky Waste
Wooden Stakes
Construction Form-work
Plastics and Films
Video
Straw Shredding

Leather Shredding
