Harden® Two Shaft Shredder TDH Series - Hydraulic Drive

Harden® Two Shaft Shredder TDH Series - Hydraulic Drive

Harden® Two Shaft Shredder TDH Series - Hydraulic Drive
Harden® Two Shaft Shredder TDH Series - Hydraulic DriveHarden® Two Shaft Shredder TDH Series - Hydraulic DriveHarden® Two Shaft Shredder TDH Series - Hydraulic DriveHarden® Two Shaft Shredder TDH Series - Hydraulic Drive
CategoriesTwo Shafts Shredder
BrandHarden
ModelTDH1216
FOB portZhongshan, Guangzhou
Terms of PaymentL/C, T/T
Download DOC
Update Time2022/10/3
Detail Information

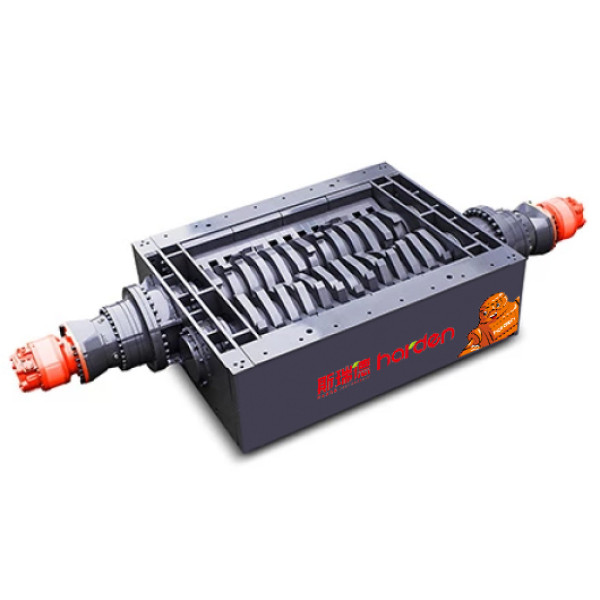

Harden® Two Shaft Shredder TDH Series - Hydraulic Drive
Product catalog download     >>
Harden TDH series hydraulic motor driven two shaft shredders are used for heavy-duty shredding of tough materials like metals, such as aluminum profiles, metal scraps, automobile scrap, coppercable, and ragger wire of paper mill waste. The most advanced feature is that the shredder can turn forward and revers without stopping the motor at anytime. Powerfully shredding force generating by hydraulic unit with dynamic-changing rotating speed and torque.

shredders equipped hydraulic system and motor for highly reliable performance and low maintenancecost. Harden TDH series shredder can be integrated in mobiles recycling systems. Acomplete car scrap can be fed into the huge shredding chamber withopenings of 1300~1600 mm in length. Relentless shredding force destroy and smash any solid waste quickly and smartly.

Features of Harden® Two Shaft Shredder
Blades Made in High Strength Alloy
Stable Quality | Wear-Resistant
Transmission Protective Structure
Labyrinthian Dust Prevention | Long Service Life
Professional Hydraulic System
Automatic Control | Press & Speed Regulation
Drawing
Parameter
Model
TDH912
TDH1216
Motor Power (KW)
132/160
200/160*2
Rotating Speed (RPM)
6-16
7-21
Size of Cutting Chamber (AxB)(mm)
900*1200
1200*1600
Machine Dimension (LxWxH)(mm)
4200*1700*3200
4600*2000*3200
Quantity of Blades (PCS)
20
26
Capacity (Ton/Hour)
2~9
8~30
Application
Clothes, Leather Scraps
Untreated MSW
Household Appliances
Hazardous Waste
Bulky Waste
Medical Waste
Construction Formwork
Tires
