Harden® Four Shaft Shredder QSH Series - Hydraulic Drive
| Categories | Four Shafts Shredder |
|---|---|
| Brand | Harden |
| Model | QS1012 |
| FOB port | Shenzhen/Guangzhou/Zhongshan |
| Terms of Payment | L/C, Western Union, T/T |
| Download DOC |  |
| Update Time | 2022/10/3 |

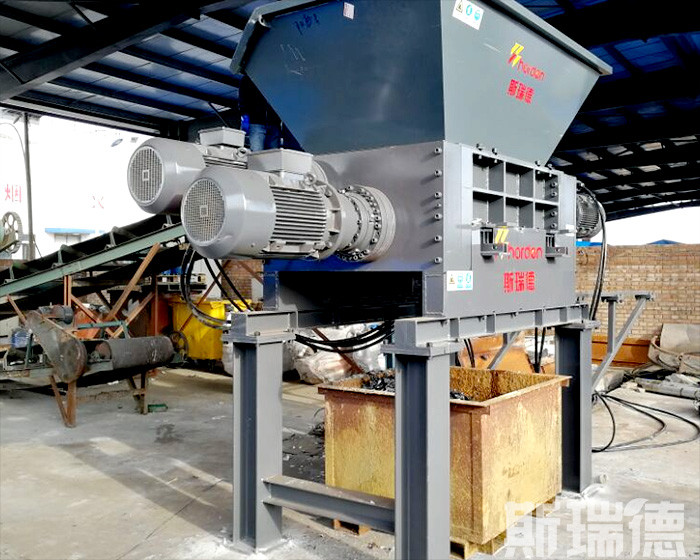

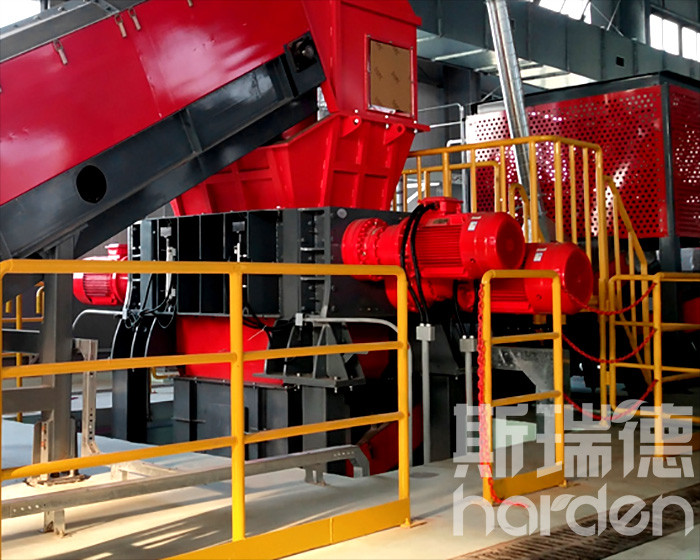

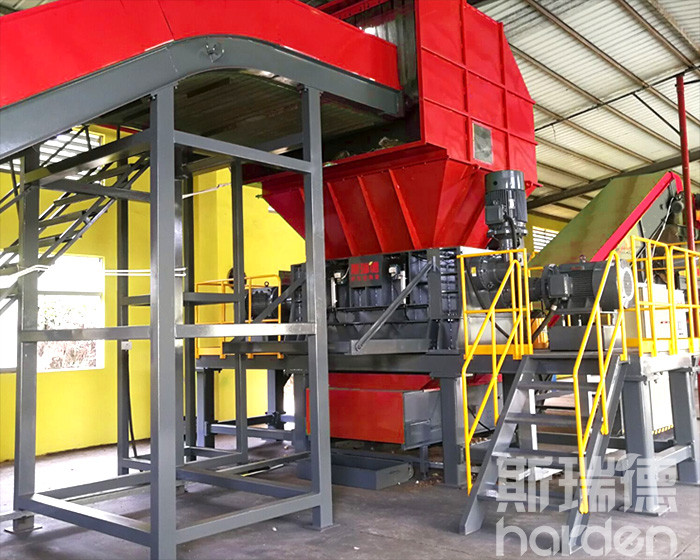

Product images
Product description
Harden® QS Series four shaft shredder has
intelligent control system for each of shaft, which enables each shaft working
with their own shredding and protection actions to increase the shredding
frequency and output.
Harden® QS Series equipped hydraulic and electric
motor combine driven system, which remains benefits, high torque and flexible
control for main shaft, high efficiency and energy saving for vice shafts.
QSH is
excellent if heavy-duty and particle size control shredding works.
Features of Harden® Four Shaft Shredder
Four
Shaft works independently
Independent torque & overload protection
Imported
Motor / Reducer
Compact structure , high efhiciency and stong power
Split Bearing Pedestal
Uniform stress, high stability and central lubricatisn
Model |
QS1012 |
QS1016 |
QS1314 | QSH1012 | QSH1314 |
Motor Power (KW) | 150 | 240 | 210 | 136 | 192 |
Rotating speed(RPM) |
Main 15.7 / Sub 16 |
Main 15 / Sub 20 |
Main 15 / Sub 16 | Main 5.5-15 / Sub 16 | Main 8-17 / Sub16 |
Size of Cutting Chamber (AxB)(mm) |
1000*1200 |
1000*1600 |
1380*1400 | 1000*1200 | 6138*1400 |
Machine Dimensions (LxWxH)(mm) |
4200*1663*2175 |
5592*3120*2012 |
4486*2000*1206 | 4200*1663*2175 | 4486*2000*1206 |
Quantity of Blade （PCS） | 80 | 108 | 46 | 40 | 46 |
Capacity (Ton/Hour) | 3-8 | 6-12 | 6-12 | 3-8 | 6-12 |
